“The ultimate low energy vehicle”

(Paper presented to Ontario Science Expo Youth Group, Nov 2013)

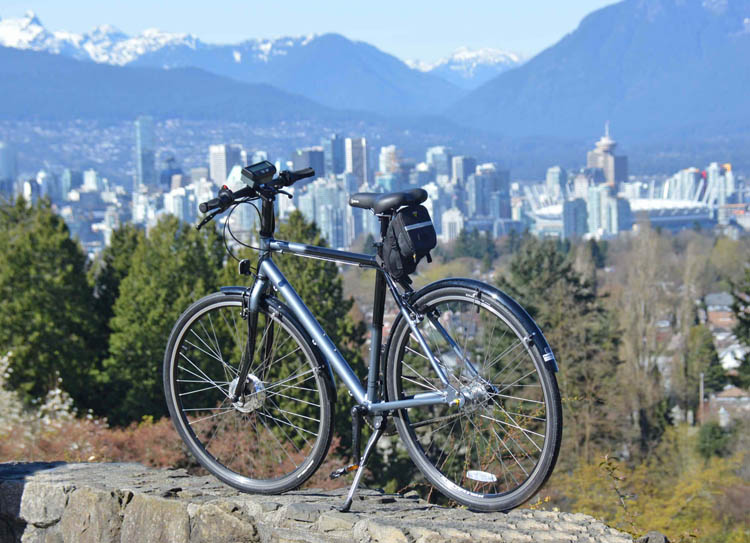

For the past four years I have been working on what I consider to be the ultimate vehicle…the lightest electric bicycle on the market.

But rather than dwell on technical details, I would like to (1) give you an overview of what I see as the importance of this technology; and (2) use this as a case history to reflect on what motivates science & innovation.

(1) First I want to get you thinking about energy:

• Lets say you own…a Honda Civic.
• Lets say you live 10 km from school.
• Imagine getting up in the morning & pushing that car to school.
• Of course, no-one would do that, but visualizing it helps to understand just how much energy/effort is involved.
• Gasoline is pretty concentrated energy…it would take about half a litre, so about 1 litre for the round trip.
• Now suppose you electrify that car (as I did with a Prius hybrid).
• In Figure 1 you can see one of the three batteries I retrofit into the Prius, each weighing 40 kg and each having just enough storage capacity to make that round trip of 20 km. A pretty sizable battery!
• Cars are heavy. What happens if we don’t carry around that extra 1500 kg?
• How big a battery would it take to make the trip on our electric bike?
• Figure 2 shows the battery that will do that…it fits in the palm of your hand & weighs less than 1 kg.
• But, you say…lets forget about gasoline or batteries, let’s just pedal the bike and forget about wasting energy.
• However, “human energy” requires food, and making & transporting our food takes a lot of energy…it comes as a surprise to most people to learn that: Pedaling uses 2-4 times the primary energy required by the e-bike (“The energy cost of electric and human-powered bicycles”, Justin Lemire-Elmore 81781999, April 13, 2004), and…
• Walking uses about 8x the energy required by the e-bike.

(2) Some facts & figures about electric bikes worldwide

• The most efficient means of transport ever devised
• Bike 10 W.h/km
  • Walk 18
• Train 35
• Car (single driver) 400

• 200 million e-bikes in China
  • Compare 60 million cars in China
  • Worldwide? 1000 million cars
• 2012 annual e-bike sales in China 30 million,
• Europe? 740,000, Japan? 350,000, USA?  80,000
• E-bikes are the world’s fastest selling electric vehicle; expected to hit 47 million per year by 2018

(3) Our e-bikes…How are they different?

• Our e-bikes are engineered for the North American market
• They are light & sporty, fun, & are designed to encourage people to get out & ride…further & more often than they ever thought they would.
• They are aimed at promoting fitness by harnessing the inherent joy of open-air cycling while allowing the rider to take the peaks off the heavy grunt work.
• A fusion of fun and fitness that “lures you in” to energy-efficient transportation!
• Our bikes are the integration of a high-performance bicycle, high-efficiency geared DC motor & state-of-the-art Lithium Ion batteries.
• For people recovering from or living with physical limitations there is an optional control system that allows the rider to program the e-bike to provide feedback on his/her own power & energy expenditure & log the results, as well as allow him to set thresholds & limits for the motor, specific to his own needs:
  • g., a rider with knee problems can set a limit on torque, whereas
  • a heart rehabilitation patient can set a threshold based on cardiac output (human energy), above which the motor assists.

(4) Reflections on what motivates discovery & innovation

• I have had a passion for designing and improving equipment all my life. Why?
• You may have heard it said that necessity is the “mother” of invention
• If that’s true… then surely play has got to be the “father”
• Looking inwards, I see this clearly…sure, in this case I had a need. I have a heart problem and I wanted to continue riding a bike.
• But the motivation to develop a bike that would meet my needs came from “play”…the “what if”, the wonder, the joy of discovery.
• Looking outwards I wonder. Could it be that play and fun are the motivators for most human endeavor, innovation and discovery?
• Whether it is science, engineering or the arts.
• I will leave you with that thought.

Figure 1: Retrofit battery in Prius

Figure 2: Compare battery sizes for same range (car vs bike)
(blue battery is PedalEasy standard battery, silver is 1 of 3 batteries in electric car)
